2025 Boston Whaler 365 Conquest

Length: 36' 6″

Centerline: 35' 8″

Beam: 12' 0″

Draft: 31″

Weight (dry, no engine): 17,603 lbs

Weight (with engine, fuel & water): 23,447 lbs

Maximum Weight Capacity: 3,405 lbs

Swamped Capacity: 3,500 lbs

Cockpit Depth: 28″

Transom Angle: 15º

Transom Height: 30″

Deadrise at Transom: 19º

Max. Horsepower: 1200 HP

Max. Engine Weight: 2,700 lbs

Fuel Capacity: 410 gallons

Fuel Capacity (diesel generator): 52 gallons

Waste Capacity: 20 gallons

Water Capacity: 52 gallons

Bridge Clearance with Hardtop: 9' 10″

Bridge Clearance with Hardtop and Radar: 10' 10″

Bridge Clearance with Hardtop and Thermal Camera:P 13' 2″

Bridge Clearance with Hardtop and Upper Station: 16’ 0″

Bridge Clearance with Hardtop, Upper Station with VHF: 21’ 6″

Bridge Clearance with Hardtop, Upper Station with Thermal Camera (Anchor light/VHF down): 18' 1″

Bridge Clearance with Hardtop, Upper Station with Outriggers: 25' 4″

Lighting

LED RGB diffused courtesy lighting dimmable via app or GUI

• Lighting – digitally controlled blue Walkway lights with automatic day/night senor (6)

• Livewell – pressurized insulated (19-gallon) in aft port corner with clear lid, blue interior and dual red LED lights

• Logo – Chrome Boston Whaler Logo & model designator

• Rails – cockpit toe rail, stainless steel under gunnel storage shelf with downrigger weight holders (Port side) 365 CONQUEST 365 CONQUEST

STARBOARD COCKPIT PREP & ENTERTAINMENT CENTER

• Prep area with solid surface counter and pull-out electric grill

• Pull-out drawer storage compartment on starboard cockpit wall includes 5-gallon pail and grill utensil storage

PORT COCKPIT STORAGE CENTER

• Drawers (2)

• Footrest – pull-out for port aft facing convertible seat PORT LOUNGE AND CONSOLE

• Acrylic/glass dash

• Storage recess on top of dash

• Storage: glovebox style with (1) USB-A / USB-C and LED light – blue

SEATING

• Port aft seat – forward facing; 2-person seat with conversion seatback for aft facing mezzanine seat
• Pullout footrest at portside conversion seatback for aft facing seat

• Port Console seat – Single person seat with conversion seatback to face forward or face aft for dinette seating.

• Table – Teak, satin finish with electric high/low pedestal converting from dinette to lounge in low position
• Lounge filler cushions

• Helm seat – fore and aft electrically adjusted with swivel

• Cockpit foldout stern bench seat

STORAGE

• Bilge storage box – dedicated open storage

• Bow anchor locker with drains with LED light

• Cabinets – Interior: Teak Straight Grain finish

• Cabin – cabinets at galley

• Cabin – cedar lined hanging locker with light and

• cubby storage

• Cabin – mid berth port side storage compartment

• Cabin – under port settee seating

• Helm deck – storage in port seat

• Helm deck – storage under port electric table with LED light – white

• Cockpit – downrigger weight holders (2)

• Cockpit – storage with 5-gallon pail and grill utensil storage

'• Cockpit – rod holders under gunnel port (2) (deleted with port foldout bench seat option)

• Cockpit wet bar – includes hot/cold faucet with stowable dual purpose cutting board/work surface sink cover

• Fishboxes – 50 gallon capacity (ea), insulated in deck with pump-out (2)

OPEN WINDSHIELD HARDTOP SYSTEM

• Canvas – side and aft rigid Makrolon® polycarbonate weather enclosure with door to cockpit, black Stamoid®

• Deck hatch – manual opening, integrated into hardtop

• Horn – electric dual polished stainless-steel trumpet horns

'• Integrated aluminum hardtop/windshield frame - black

• Ladder access to hardtop (white or black depending on frame color selection)

• LED flood lights – cockpit (2), bow (1)

• LED navigation lights, stainless steel, recessed in hardtop

• LED RGBW map/overhead lights

• Open tempered side glass

• Rails – hand rails; companion way to helm deck and into cabin, boarding ladders, prep station – welded stainless steel

• Rails – high bow rails, welded stainless steel

• Raw-water washdown – stainless steel faucet located in cockpit

• Rod holders – forward deck mounted stainless steel (2)

• Rod holders – gunnel mounted stainless steel (5) – cockpit foldout bench seat port side option deletes (1) rod holder

• Rod holders – transom mounted stainless steel (4)

• Rub rail – heavy duty white rub rail with stainless steel insert

• Self-bailing cockpit sole

• Transom door – 1.5″ thick acrylic with stainless steel latch

• Windlass with 400' rode and chain with handheld remote control, stainless steel swivel, polished stainless-steel anchor (35 lbs) and polished stainless-steel bow roller davit

HELM CONSOLE – STARBOARD SIDE

• 16,000 BTU AC unit with 2 helm vents, wet bar area vent, and discharge from hardtop to port helm deck

• Accent gelcoat color to reduce glare
• Compass with lighting

• Defogger system, port and starboard 120V heater with blower

• Drink holders – Stainless steel; extended depth (1), standard depth (1) • Electrical switch panel with SS push button switches with illuminated text

• Electronics mounting surface with space for dual 16″ or dual 19″ Simrad displays

• Footrest molded into console with solid teak steps with satin finish

• Mercury DTS dual binnacle controls with integrated Auto Drive Trim, push button start/stop controls

• Storage recess on top of dash with (1) dual USB

• Ignition key switches – located in the cabin MDP with push button start/stop at helm

• Storage at starboard coaming pocket with (1) 12-V wireless cell phone charging holder and LED light - blue

• Steering wheel – cast stainless steel with knob and tilt helm

• Stereo volume control – JL Audio®

• Trim tab control 16″ SIMRAD NSO EVO3S ELECTRONICS / DUAL NAVIGATION PACKAGE

• Airmar 1000 watt recessed thru hull Dual channel CHIRP transducer (B275LH-W)

• Dash surface – custom black acrylic integrated with switch panels and flush mounting of dual displays

• Simrad NSO evo3S 16” screen (GPS, Chart Plotter, Fishfinder)

• Simrad NSO evo3S 16” screen (Additional Display)

• Active Imaging 3 in 1 Transom Mount Transducer (CHIRP, SideScan, DownScan)

• Integrated Mercury VesselView Link

• Simrad RS40 VHF Radio with AIS and HS40 wireless handset

• GS25 GPS Antenna 15 N2K W/Heading Sensor

• SIMRAD S5100 1kw Dual channel CHIRP Sounder Module

• StructureScan 3D transducer included, replaces Active Imaging 3-in-1 transducer

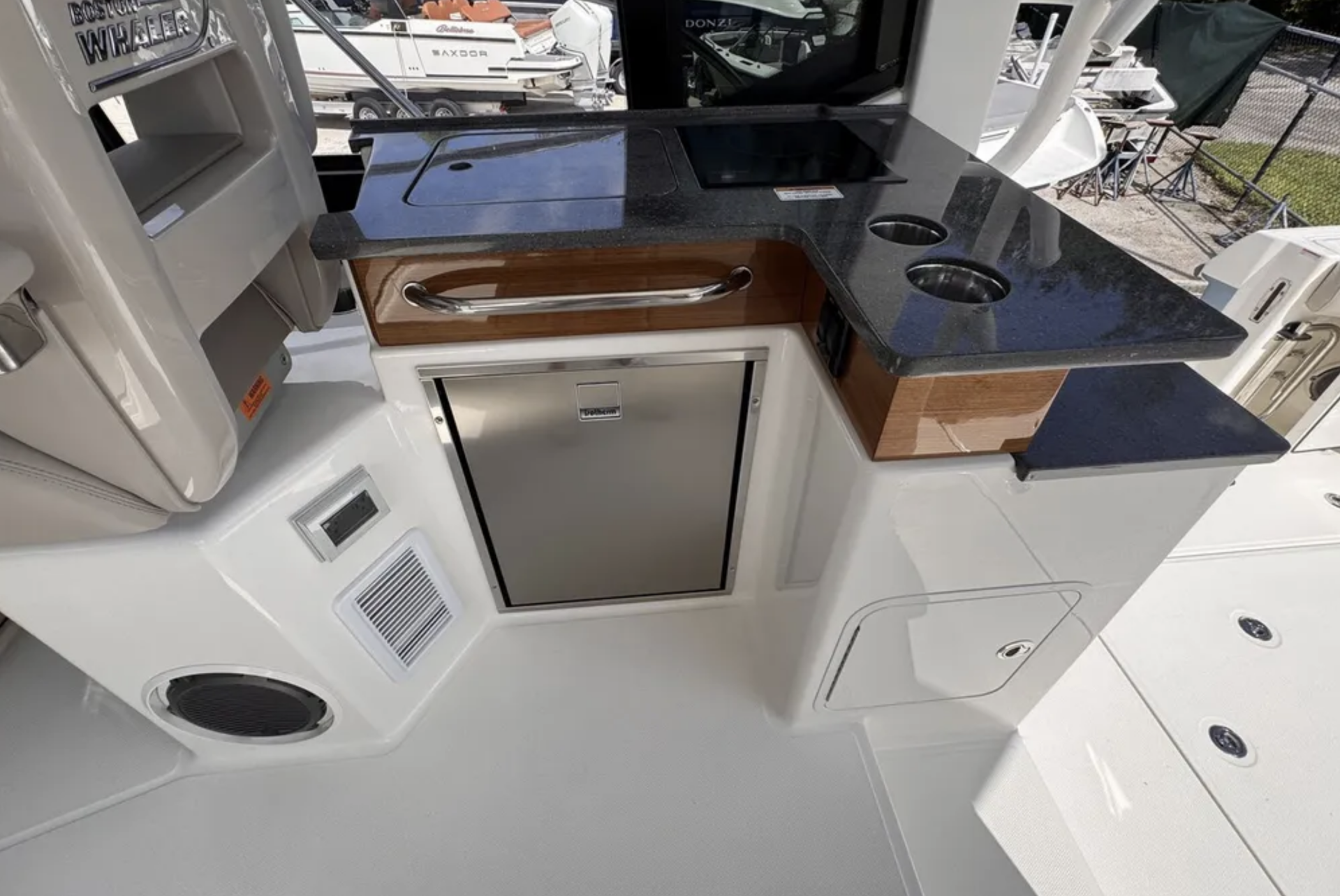

STARBOARD HELM DECK WET BAR

• Countertop – solid surface

• Drink holders – Stainless steel; extended depth (1), standard depth • Rail – stainless steel handrail
• Receptacle 120-V

• Refrigerator / freezer – stainless steel 12-V / 120-V, 3.0 cuft.
• Sink with SS faucet (hot and cold), with filler cutting board and dedicated filler cutting board storage
• Wood accents – Teak wood facia under the counter edge
