2025 Catalina 445

2025 Catalina 445
$911,769.90



GENERAL DIMENSIONS

Length Overall: 44′ 5″

Length of Hull: 43′ 3″

Length at Waterline: 38’ 4″

Beam: 13′ 7″

Distance from Waterline to Masthead: 63′ 10″



WING KEEL

Draft: 5′ 0″

Ballast: 8,200 lbs

Basic Weight: 24,500 lbs



FIN KEEL

Draft: 6′ 8″

Ballast: 7,200 lbs

Basic Weight: 23,500 lbs



RIG MEASUREMENTS

Total with 100% Foretriangle: 856ft  2

Total with Standard 135% Genoa: 1002ft  2

I= 53′ 6″

J= 15′ 8″

P= 51′ 6″

E= 17′ 0″



TANKS & CAPACITIES

Water: Forward 50 gal, Port 62 gal, Starboard 56gal

Water Heater: 11 gal

Total Water: 179 gal

Sanitary Holding Tank: Fwd 31 gal, Aft 23 gal

Total Holding: 54 gal

Fuel: 66 gal



ENGINE & CONTROLS

Yanmar 4JH57CR, 57 HP @3000RPM

Common Rail, Electronic Diesel

Twin Pedestal Steering with 32″ Stainless Wheel

Single Lever Engine Controls

3 Blade Dynajet 18 x 14

1 1/4″ S.S. Shaft



WINDLASS & CHAIN

Quick Rider with 5/16″ Chain Wheel

5/16″ High Test Gd 40 or BBB Gd 30 Chain



ANCHOR

CQR – XT 45 S.S. Plow #SP4204



All specifications are approximate and subject to change without notice.

Actual equipment also subject to change without notice.





STANDARD EQUIPMENT

CONSTRUCTION
  • One-Piece Fiberglass Hull with End Grain Balsa Core Sandwich Construction Above the Waterline, and a Vinylester Integral Barrier to Resist Osmosis Blistering

  • One-Piece Fiberglass Deck with End Grain Balsa Core and Molded-In Diamond Pattern Non-Skid Surfaces Finished in Two-Tone White and Grey

  • One-Piece Fiberglass Deck Liner Finished in NonGlare Texture

  • One-Piece Molded Fiberglass Structural Grid

  • One-Piece Molded Fiberglass Hull Liner with Satin Finish

  • Lead Fin Keel with 316 Stainless Steel Attaching Bolts

  • Five Year Gel Coat Blister Protection * ( 2 )

  • Five Year Hull Structure Warranty * ( 3 )

SPARS & RIGGING
  • Furling Mainsail with Vertical Battens

  • 135% Genoa, with U.V, Protection, White

  • Complete Standing and Running Rigging, 316 SS

  • Internal Pre-Stretched Dacron Halyards

  • PVC Wiring Conduit with Messenger in Mast

  • Selden In-Mast Mainsail Furling System

  • Selden Anodized Double Spreader Mast and Boom

SAIL HANDLING & EQUIPMENT
  • ( 2 ) Two-Speed Chrome Self Tailing Primary Winches

  • ( 2 ) Two-Speed Chrome Self Tailing Jib Halyard Winches ST Port/Starboard led Aft to a Bank of Sheet Stoppers

  • Mainsheet Ball Bearing Gauhauer Block System

  • ( 1 ) 10 ” Winch Handle, ball bearing

  • Ball Bearing Mainsheet Traveler with Car Adjuster System led to Portside

  • Genoa Tracks Inboard with Ball Bearing Low Lead Blocks

  • All Halyards led Aft, to Sheet Stoppers

  • Headsail Furling System

PROPULSION, STEERING & CONTROLS
  • Single Lever Engine Controls Mounted on Starboard Side with Steering Brake in Wheel Hub

  • Yanmar ( 4 ) Cylinder Diesel Engine, 54 HP, Fresh Water Cooled with Reduction Gear

  • Bronze Propeller, Three Blade

  • Sea Water Filter for Engine Cooling

  • Centrally Mounted Engine Instruments

  • Emergency Tiller Access and Emergency Tiller

  • Dual Station Pedestal Steering

  • Twin 32 ” Destroyer Wheels

  • Bilge Blower and Ventilation System

  • Illuminated Compass in Cockpit Table

DECK HARDWARE
  • Fiberglass Cockpit Table with ( 2 ) Leaves, Foot- brace, Center insulated Compartment, and Handrails

  • Walk Through Stern with Transom Boarding Platform

  • Stern Boarding Ladder. Telescopic Type

  • 27 ” Double Lifelines with Gates Port and Starboard

  • Midship Spring Line Cleats with Chocks

  • Molded-In Gel Coat Waterline, Midwatch Blue

  • Midwatch Blue and Silver Sheer Stripes

  • Large Double Anchor Rollers on Foredeck with Mounting Point for Bowsprit

  • Electric Anchor Windlass with Power Up and Down Foot Switches

  • Large Divided Anchor Locker for Below Deck Chain and Rode Storage

  • Stainless Steel Handrails on Cabin Top

  • Stern Rails with Observation Seats, Cup Holders, Outboard Bracket

  • LPG Storage Locker for ( 2 ) 10 lb. alum. Tanks

  • Hot & Cold Shower Mounted In Transom Boarding Area

  • Water-Tight Strike Zone Collision Bulkhead at Bow

INTERIOR
  • Varnish Finish On Interior Teak

  • Veneer Bulkheads with Solid Teak Trim

  • Cabin Window Shades

  • Navigation Station with Chart Table with 110 and 12 volt outlets

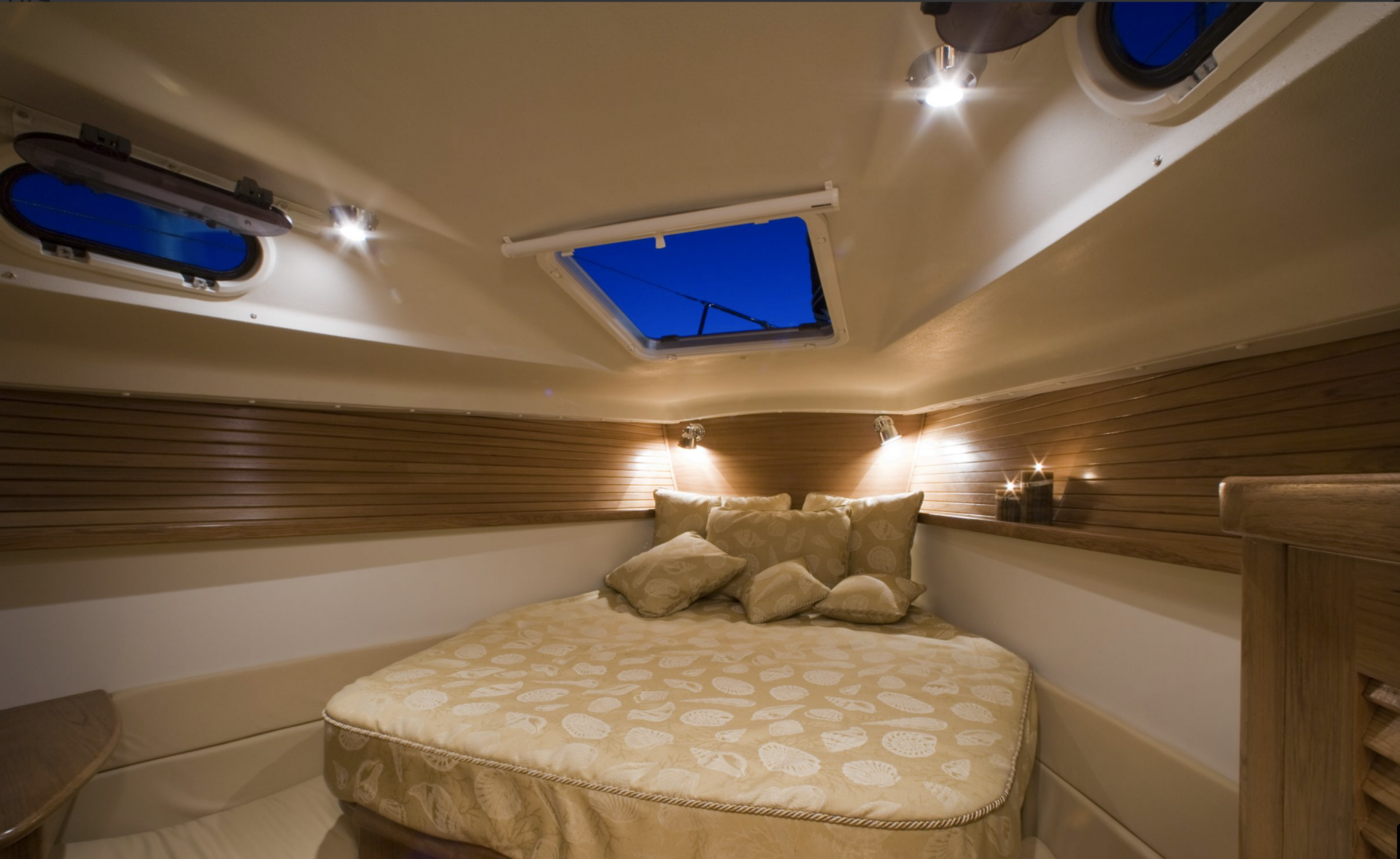

  • Owner’s Stateroom with Large Double Berth, Cedar lined Hanging Locker, Drawers, and Private Head

  • Teak and Holly Textured High Pressure Laminate Sole

  • Inner Spring Mattresses on Fore and Aft Berths with Custom Fitted Sheets

  • LED Interior Lighting

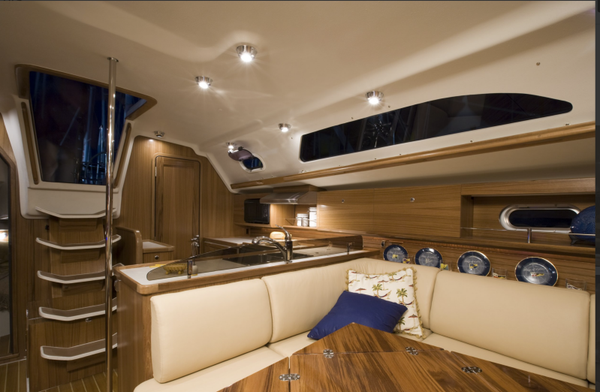

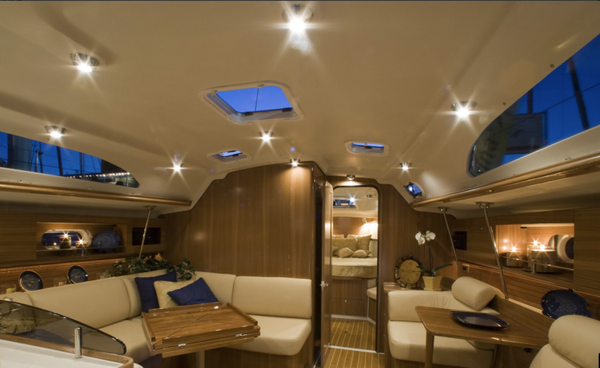

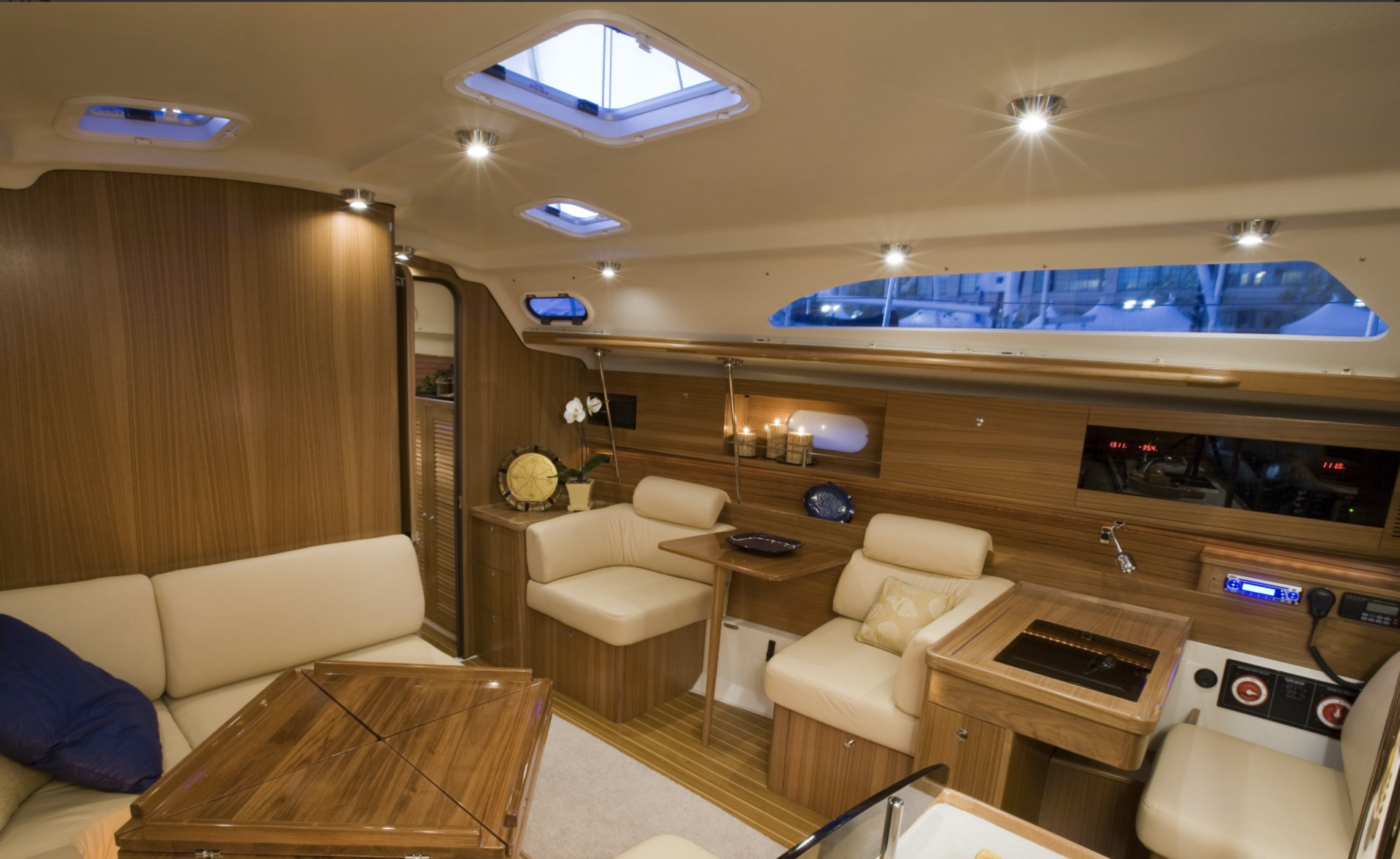

  • Main Saloon Features Large Dinette, Gloss Finished Dining Table to Port, Settee Seating Starboard

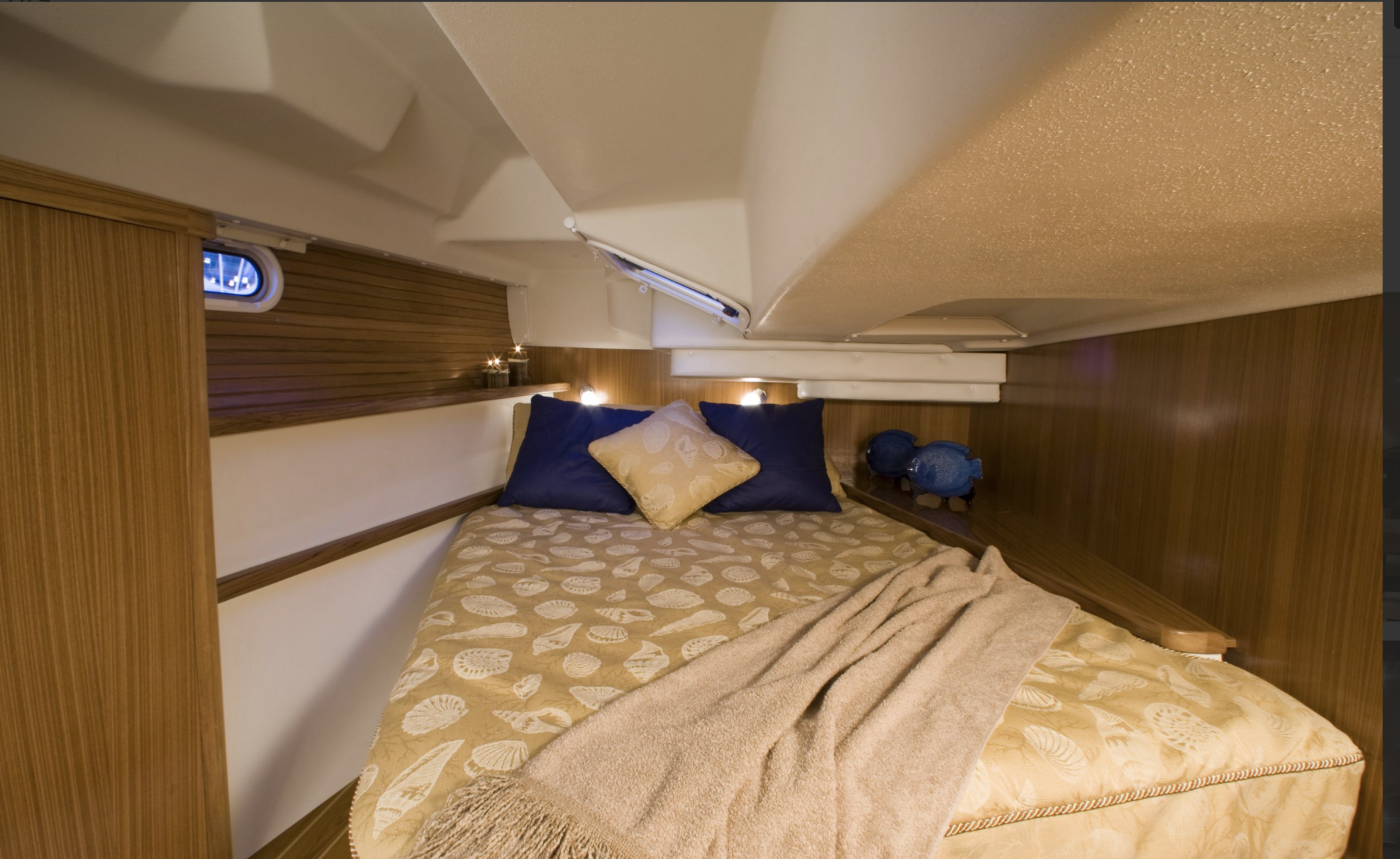

  • Guest Stateroom Aft on Starboard, Features Large Double Berth, Hanging Locker, and Private Access to Head

  • Third Cabin Aft to Port, Convertible to Double Berth, Upper/Lower Berths, or Storage Locker

  • Dedicated Cabinet for easy access to Engine Filters located in Aft Port Cabin

  • Filler Cushion for Conversion of Main Salon Dinning Table to Sleeping Berth

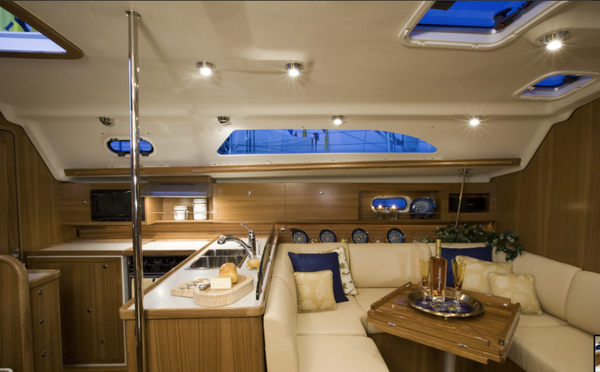

GALLEY
  • Front Loading Refrigeration, D.C. Powered with Freezer Compartment

  • Top Loading Insulated Compartment, Available as a Second Refrigerator or Freezer

  • Polished Double Stainless Steel Sinks

  • Large Storage Cabinets over Galley

  • Large Storage Lockers with Drawers and Bins

  • Gimbaled ( 3 ) Burner L.P.G. Stove w/Oven, Stainless Steel, Oven Hood, Light & Vent

  • Multi-Drawer Bank with Utensil Storage Rack

  • Microwave Oven, AC Powered

  • Single Lever Faucet with Pull-Out Sprayer

PLUMBING SYSTEM
  • Pressure Water Distribution System with Filter at Pump and Tank Selection Valves for ( 3 ) Tanks

  • 11 Gallon Hot Water Heater with Engine Heat Exchanger and 110V Electric Heating Element

  • ( 2 ) Electric Macerating Heads with Holding Tanks and Deck and Thru-Hull Outlets

  • Electric Bilge Pump with Float Switch

  • Manual Bilge Pump and Bilge High Water Alarm

  • Head Compartment Forward with Vanity Counter, Medicine Chest and Shower Compartment Stall

  • Head Aft with Vanity, Sink, Medicine Chest, and Shower

ELECTRICAL SYSTEM
  • Three Heavy Duty 8-D 12 Volt Marine Deep Cycle Batteries

  • 40 Amp Battery Charger, Multi-Bank Automatic

  • L.E.D. Running Lights, Fore and Aft

  • 110 Volt, 30 AMP Shore Power System

  • ( 1 ) 110 Volt, 30 AMP, Shore Power Cord 50 ft.

  • L.E.D. Anchor Light at Masthead

  • 12 Volt Lighting Throughout

  • Custom 115 Volt AC/12 Volt DC Electric Panel

  • Circuit Breakers for AC and DC Electrical Panel and Windlass Control

  • Shore Power Galvanic Isolator

  • Ground Fault Circuit Protection

  • A.C. Duplex Receptacles Throughout

SAILING INSTRUMENTS
  • Raymarine i70 2-Multi Function Displays with Transducer 1 Mounted at Port and the other at Starboard Helm Stations – Speed, Depth & Wind
