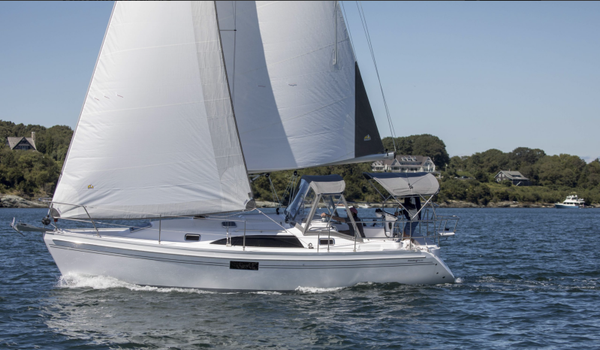

2025 Catalina 386

$419,999.90

GENERAL DIMENSIONS

Length Overall: 33′ 0″

Length of Hull: 31′ 0″

Length at Waterline: 26’6″

GENERAL DIMENSIONS

Length Overall: 33′ 0″

Length of Hull: 31′ 0″

Length at Waterline: 26’6″

Beam: 11′ 7″

Distance from Waterline to Masthead: 49′ 3″

SHOAL BULB KEEL

Draft: 4′ 9″

Ballast: 4,400 lbs

Displacement – Half Load: 12,400 lbs

FIN KEEL

Draft: 6′ 3″

Ballast: 4,000 lbs

Displacement – Half Load: 12,000 lbs

RIG MEASUREMENTS

Total with 100% Foretriangle: 530ft ²

Total with Standard 135% Genoa: 589ft ²

I= 42′ 9″

J= 12′ 0″

P= 40′ 3″

E= 13′ 6″

TANKS & CAPACITIES

Water: Forward 35 gal

Water Heater: 6 gal

Total Water: 41 gal

Sanitary Holding Tank: 17 gal

Fuel: 25 gal

ENGINE & CONTROLS

Yanmar 3YM20, 21 HP Diesel

Pedestal Steering with 40″ Stainless Wheel

Single Lever Engine Controls

3 Blade Dynajet 14 x 2

WINDLASS & CHAIN

Quick Genius 600

1/4″ High Test or BBB Chain

WINCHES

Primary Lewmar #40, Chrome Bronze, Evo Self Tailing

Secondary Lewmar #30, Chrome Bronze, Evo Self Tailing

ELECTRICAL

Batteries: Qty-2 4D 150 Amp-Hrs

Shore Power: Qty-1. 30 Amp Service

Battery Charger: Qty-1 20Amp

All specifications are approximate and subject to change without notice.

Actual equipment also subject to change without notice.

STANDARD EQUIPMENT

CONSTRUCTION

Hull of Hand-laid Fiberglass with Structural Grid and
Fiberglass Hull Liner bonded to the Hull Vinylester
resin barrier coat to resist Osomotic blistering
Deck of Hand -laid cored Fiberglass with a Full
Fiberglass Headliner
Deck Surfaces with Molded-in Diamond Non-skid
Lead Fin Keel with Stainless Steel Bolts
Five Year Gel Coat Blister Protection* (2)
Five Year Hull Structure Warranty* (3)
Gelcoat Waterline, Tin Man Grey
Custom Sheer Stripes
Collision Bulkhead with ‘Strike Zone’ Below
Waterline

SPARS & RIGGING

Selden Furling Mast with In-Mast Mainsail Furling
Furling Mainsail with Vertical Battens
135% Genoa, with UV Protection, White
Complete Standing and Running Rigging
Internal Low-Stretch Dacron Halyards
PVC Wiring Conduit with Messenger in Mast

SAIL HANDLING & EQUIPMENT

( 2 ) Two-Speed Self Tailing Primary Winches
( 2 ) Two-Speed Self Tailing Mainsheet / Halyard Winches
Mid-boom Mainsheet System
( 1 ) Ball Bearing Winch Handle
Headsail Furling Gear
Boom Vang, Rigid Adjustable Type
Inboard Genoa Tracks

PROPULSION, STEERING & CONTROLS

Yanmar Diesel Engine, 20 HP Heat Exchanger
Cooled with Reduction Gear
Electronic Engine Panel
Bilge Blower
Edson Steering System with Pedestal and Single
Lever Engine Controls
Steering Brake
Bronze Propeller, Three Blade
Sea Water Filter System for Engine Cooling
Illuminated Compass
Emergency Tiller Access and Emergency Tiller
32″ Stainless Steel Wheel
Rudder with Stainless Steel Stock and Low
Friction Bearing System

DECK HARDWARE

Comfortable Cockpit with Contoured Coamings
Walk Through Stern
Transom Boarding Platform
Telescopic Stern Boarding Ladder
Double Lifelines with Gates Port and Starboard
Mooring Cleats, Two Fore and Aft
Large Anchor Roller on Foredeck
Molded In Anchor Locker for Below Deck Chain
and Rode Storage
Stainless Steel Handrails on Cabin Top
Stern Rail with Observation Seats
Removable Helm Seat
Hot & Cold Shower Mounted in Transom
Boarding Area
L E D Cockpit Light
Molded In LP Gas Locker with (1) 10 lb Tank

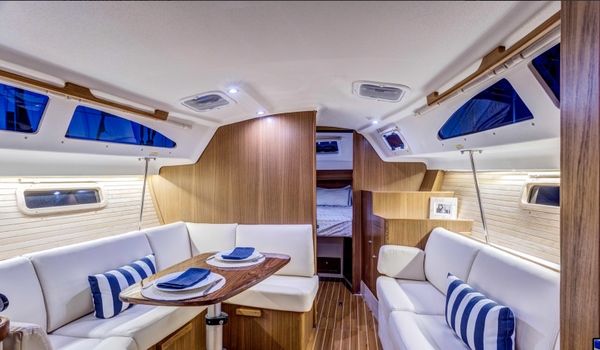

INTERIOR

Varnish Finish on Interior Teak
Teak Veneer Bulkheads with Solid Teak Trim
Solid Teak Trim Doors, Cedar lined Hanging
Lockers
Chart Table with Adjustable Chart Light
Teak and Holly Textured Laminate Sole
Dining Table
Fabric Covered Interior Cushions
Fixed Ports in Hull
Opening Ports with Screens
Deck Hatches

GALLEY

Refrigeration, D C Powered with Freezer
Compartment
Stainless Steel Sink, polished
Single Lever Faucet with Pullout Sprayer
Large Top Loading Storage Bin with Rack
Utensil Drawer
Large Storage Cabinets in Galley
Two Burner, Stainless Steel LPG Stove & Oven,
with Auto Ignition
Corian Countertops

PLUMBING SYSTEM

Hot & Cold Pressure Water Distribution System
Manual Bilge Pump
Electric Bilge Pump with Float Switch
Marine Head with Holding Tank and Deck Outlet
Water Heater with 120VAC and Engine Heat
Exchange Elements
High Water Bilge Alarm
Sensar Bilge Monitoring System

ELECTRICAL SYSTEM

Marine Battery Charger
Deck Light and Steaming Light on Mast
Anchor Light at Masthead
12 Volt LED Lighting Throughout Interior
120 Volt AC Electric Panel
12 Volt DC Electric Panel w/ USB
AC Duplex Receptacles Throughout
120 VAC Shore Power with Polarity
Indicator, ELCI Breaker and Galvanic
Isolator
DC Electrical System with Two Batteries,
Selector Switch and Panel Circuit Protection
(1) 120V 30 amp Shore Power Cord, 50
Scanstrut USB-C

SAILING INSTRUMENTS

Raymarine 170 1-Multi Function
Display with Transducer
– and/or –
Garmin GMl20 1-Multi Function
Display with Transducer

NOTE

(1) All Prices and specifications are subject to change at any

time including after receipt of the customer s order, until final

delivery to the customer

• (2) Five year gel coat blister protection provided by Catalina

Yachts Five Year Limited Warranty against below the waterline

gel coat blistering, for precise terms, please refer to the

Catalina Limited Warranty

*(3) For precise terms of Catalina Yachts Five Year Hull

Structure Limited Warranty please refer to Catalina Yachts

Limited Warranty booklet
