2025 Cataline 386

2025 Cataline 386
$419,999.90



GENERAL DIMENSIONS

Length Overall: 39′ 10″

Length of Hull: 38′ 2″

Length at Waterline: 34′ 5″

Beam: 13′ 1″

Distance from Waterline to Masthead: 56′ 0″



SHOAL DRAFT BULB KEEL

Draft: 4′ 8″

Ballast: 6,200 lbs

Displacement Half Load: 18,800 lbs



FIN KEEL

Draft: 6′ 10″

Ballast: 5,200 lbs

Displacement Half Load : 17,800 lbs



RIG MEASUREMENTS

Total with 100% Foretriangle: 703ft  2

Total with Standard 135% Genoa: 807ft  2

I= 50′ 6″

J= 14′ 2″

P= 46′ 0″

E= 15′ 0″







TANKS & CAPACITIES

Water: Forward 55 gal, Port 42 gal

Water Heater: 6 gal

Total Water: 100 gal

Waste/Black Water Holding Tank: 31 gal

Fuel: 38 gal



ENGINE & CONTROLS

Yanmar 3JH40 CR Diesel

Pedestal Steering with 40″ Stainless Wheel

Single Lever Engine Controls

3 Blade Michigan MP3 18×12

Shaft 1.25″



WINDLASS & CHAIN

Quick Rider 1000

5/16 High Test or BBB Grade 30 Chain



WINCHES

Primary #50 Lewmar Evo Self Tailing

Secodary #40 Lewmar Evo Self Tailing



CONSTRUCTION
  •

    Hull of Hand-laid Fiberglass with a Full Structural Grid and Hull Liner bonded to the Hull. Vinylester resin barrier coat to resist Osomatic blistering.

  •
    Deck of Hand-Laid Cored Fiberglass with a Full Fiberglass Headliner

  •
    Deck Surfaces with Molded-in Diamond Pattern Non-skid

  •
    Lead Fin Keel with Stainless Steel Bolts

  •
    Gel Coat Waterline, Tin Man Grey

  •
    Custom Sheer Stripes

  •
    Midwatch Blue and Silver Stripes

  •
    Five Year Gel Coat Blister Protection * ( 2 )

  •
    Five Year Hull Structure Warranty * ( 3 )

  •
    Collision Bulkhead at Bow with “ Strike Zone ” below Waterline

SPARS & RIGGING
  •

    135% Genoa, with U.V, Protection, White

  •
    Complete Standing and Running Rigging

  •
    Internal Low-Stretch Dacron Halyards

  •
    PVC Wiring Conduit with Messenger in Mast

  •
    Furling Mainsail with Vertical Battens

SAIL HANDLING & EQUIPMENT
  •

    Selden In-Mast Mainsail Furling

  •
    ( 2 ) Two-Speed Self Tailing Primary Winches

  •
    (2) Self-Tailing Halyard & Mainsheet Winches

  •
    Mainsheet System

  •
    Headsail Furling System, Selden

  •
    Boom Vang, Rigid Adjustable Type

  •
    Inboard Genoa Tracks

  •
    (2) Low-Lead Genoa Blocks

PROPULSION, STEERING & CONTROLS
  •

    Edson Steering System with Pedestal and Single Lever Engine Control

  •
    Steering Brake

  •
    Yanmar40hp Common Rail Diesel Engine, Heat Exchanger Cooled with Panel and Tachometer

  •
    Bronze Propeller, Three Blade

  •
    Sea Water Filter System for Engine Cooling

  •
    Emergency Tiller Access and Emergency Tiller

  •
    Bilge Blower

  •
    Illuminated Compass

  •
    40” Wheel, Stainless Steel

  •
    Fiberglass Composite Rudder with 316 Stainless Steel Core and Post

DECK HARDWARE
  •

    Comfortable “T” Cockpit with Contoured Coamings

  •
    Fiberglass Cockpit Table with Two Folding Leaves and Foot Brace

  •
    Walk Through Stern with Removable Helm Seat

  •
    Stern Boarding Ladder

  •
    Double Lifelines with Gates Port and Starboard

  •
    Mooring Cleats, Two Fore and Aft

  •
    Midship Cleats

  •
    Large Double Anchor Roller

  •
    Large Anchor Locker for Below Deck Chain and Rode Storage

  •
    Stainless Steel Handrails on Cabin Top

  •
    Stern Rail with Observation Seats, Port and Starboard

  •
    Double Lifelines with Pelican Hooks

  •
    L.E.D. Cockpit Light

  •
    Bi-Fold Teak Cockpit Companionway Door

  •
    Large Cockpit Locker with Gull Wing Hatch

  •
    Molded In LP Gas Locker for (2) tanks






INTERIOR
  •

    Varnish Finish On Interior Teak & Maple

  •
    Cabin Window Shades

  •

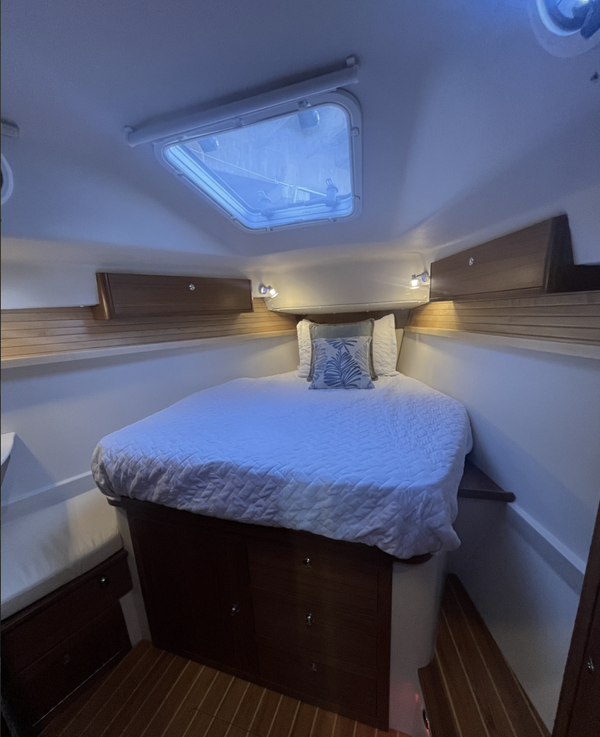

    Inner-Spring Mattresses in Fore and Aft Berths with Custom Fitted Sheets

  •
    Teak Veneer Bulkheads with Solid Teak Trim

  •
    Solid Teak Trim Doors, Cedar lined Hanging Lockers

  •
    Chart Table with Storage Compartment and 120V and 12V Outlets & USB Port

  •
    Teak and Holly Textured High Pressure Laminate Sole

  •

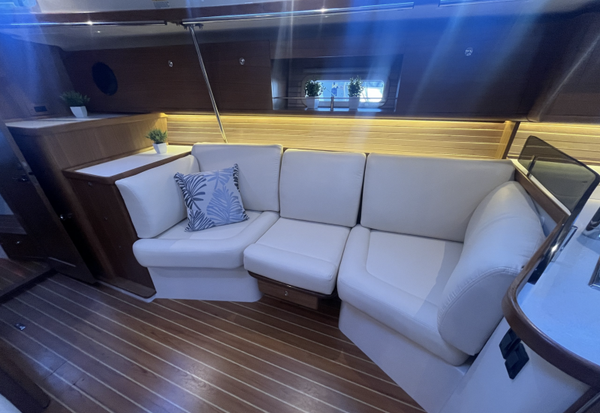

    Fabric Covered Interior Cushions

  •
    Fixed Ports in Hullsides

  •
    Opening Ports with Screens

  •
    Offshre Door Handles

GALLEY
  •

    Refrigeration, D.C. Powered System with Freezer Compartment, Front Access

  •
    Large Storage Cabinets in Galley

  •
    Large Icebox with Shelves, Top Access

  •
    Two Burner Stove with Oven, Stainless Steel, L.P.G. with Auto Ignition

  •
    Stainless Steel Double Sinks, polished

  •
    Single Lever Faucet with pull-out Sprayer

  •
    Microwave Oven A/C Powered

  •
    Corian Countertops

PLUMBING SYSTEM
  •

    Hot & Cold Pressure Water Distribution System

  •
    Manual Bilge Pump

  •
    Hot and Cold Shower at Transom Steps

  •
    Electric Bilge Pump with Float Switch

  •

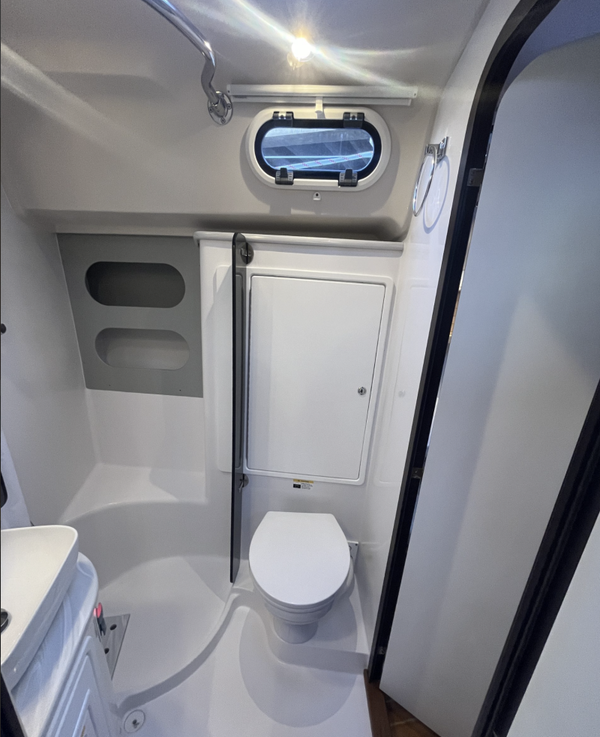

    Electric Macerating Marine Head with Holding Tank and Deck Outlet

  •
    Valve for Overboard Discharge of Holding Tank

  •
    Water Heater with Engine Heat Exchanger and Electric Heating Element

  •
    High Water Bilge Alarm

  •
    Sensar Bilge Monitoring System

ELECTRICAL SYSTEM
  •

    Marine Battery Charger, Multibank

  •
    Battery Condition Meter

  •
    Scanstrut USB-C Phone Charger

  •
    12 Volt LED Lighting Throughout

  •
    Quick Nautical LED Interior Lighting

  •
    120 Volt AC Electric Distribution Panel

  •
    12 Volt DC Electric Panel with circuit breakers

  •
    AC Duplex Receptacles Throughout

  •
    AC Dockside Power with Outlets and Polarity

  •
    Indicator and Circuit Protection

  •
    (1) 120V 30 amp Shore Power Cord, 50’

  •
    Deck Light and Steaming Light on Mast

  •
    Electric Anchor Windlass, with Power Up and Down Controls with Chain Gypsy

  •
    Navigation Lights to International Rules

  •
    Galvanic Isolator Shore Power

SAILING INSTRUMENTS
  •

    Raymarine i70 2-Multi Function Displays with Tranducer
    – And/Or –
    Garmin GM-20 2-Multi Function Displays with Transducer or TD-50 2 MFD with Transducer
